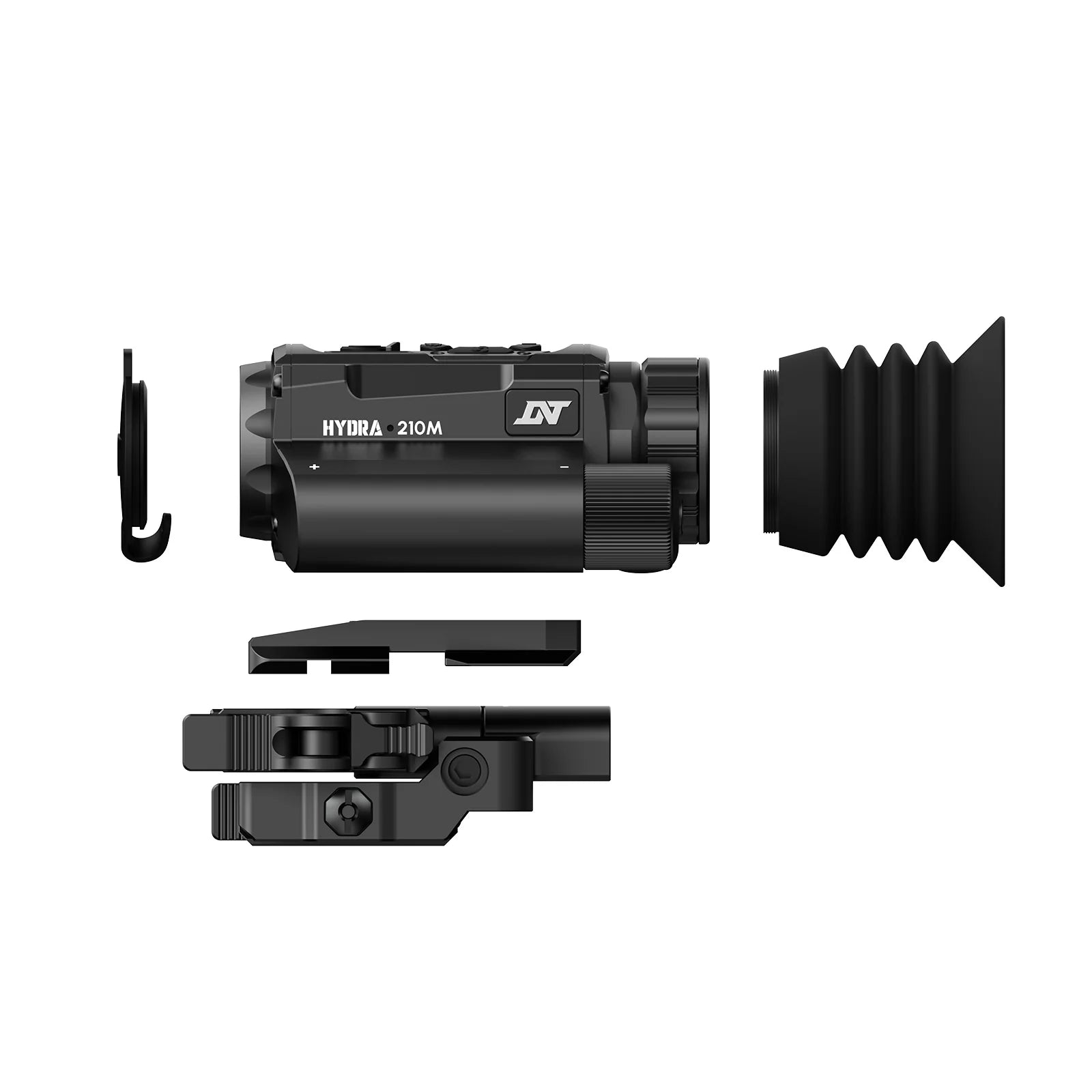

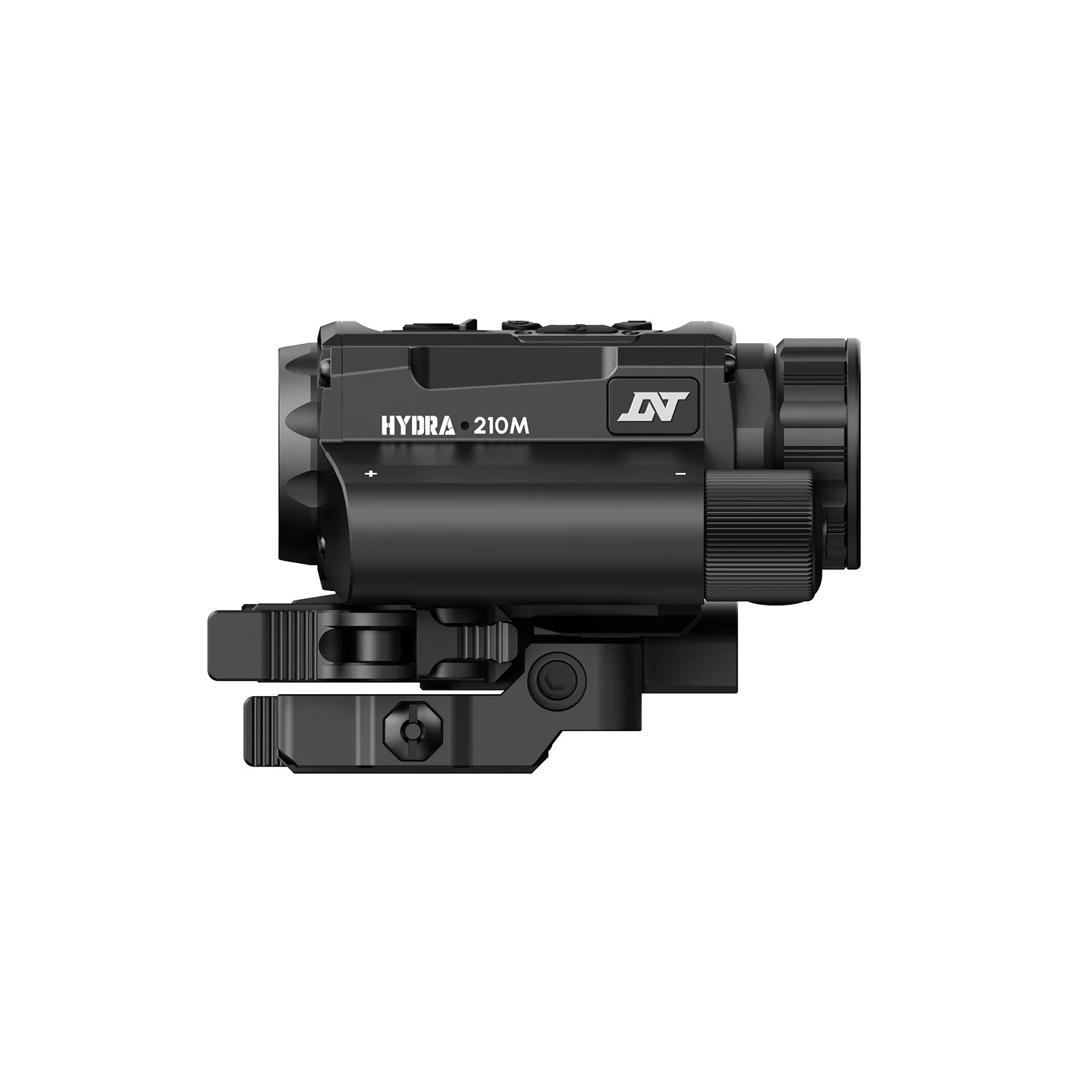

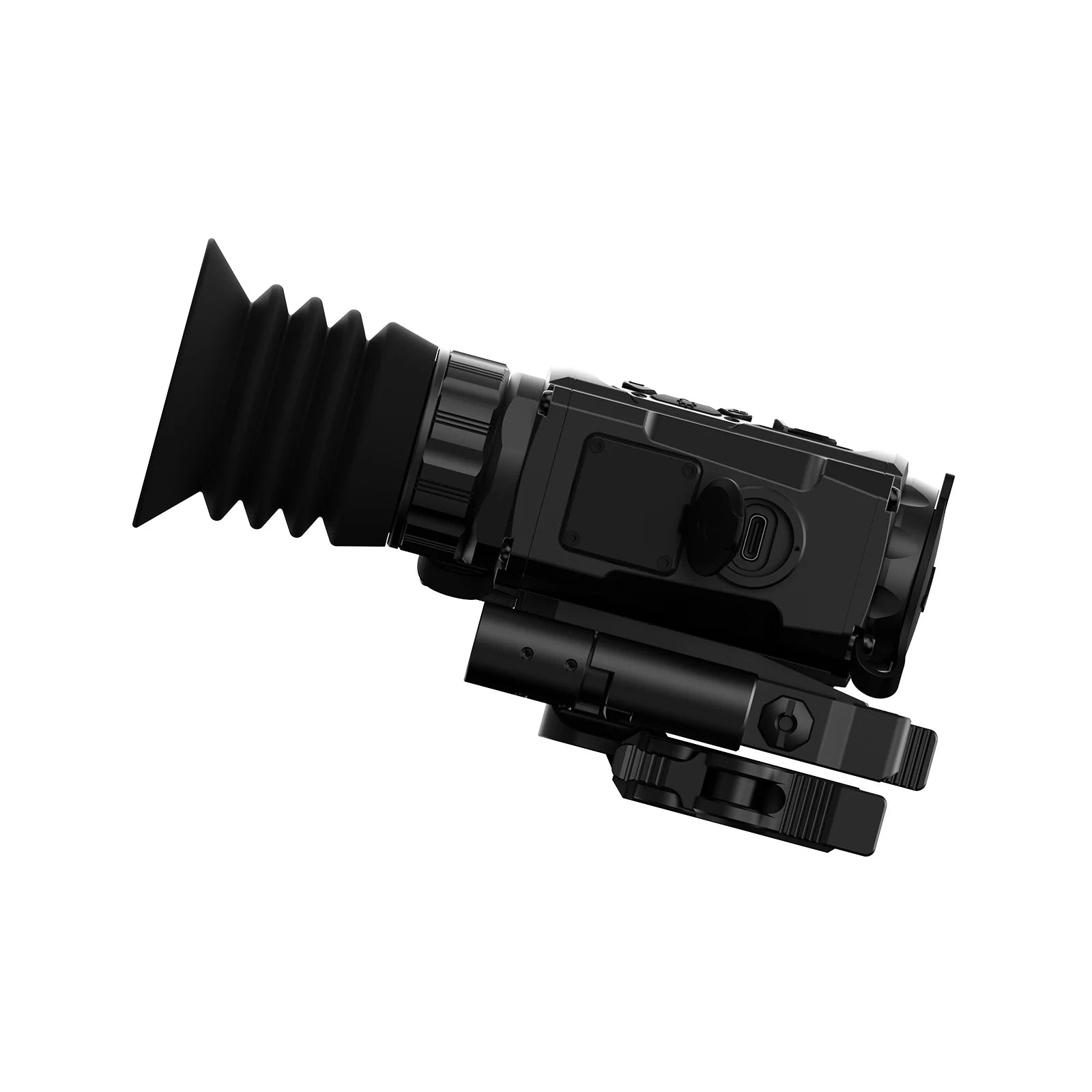

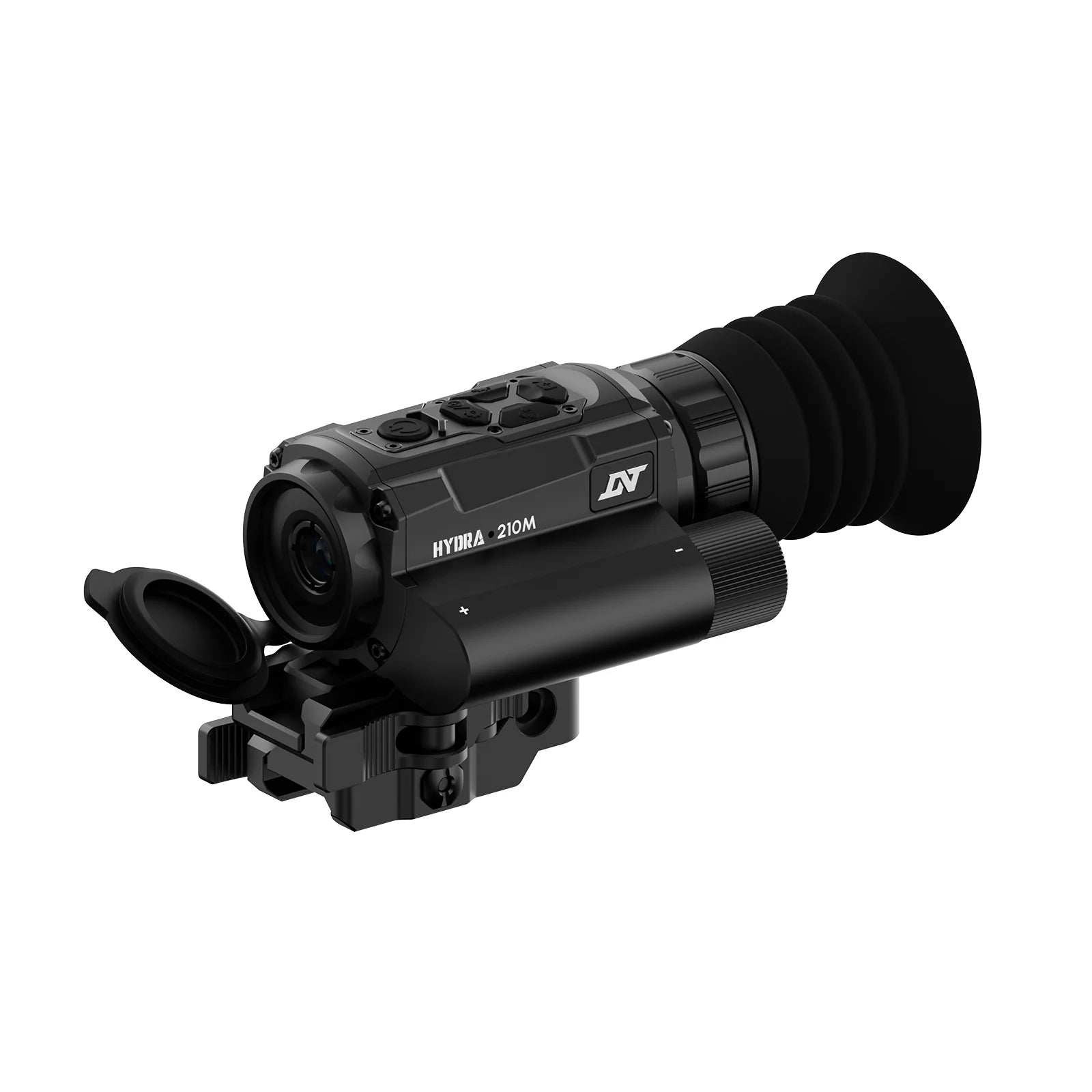

Mini Multi-Function Thermal Scope - Helmet Mounted, Standalone Scope, Clip-On, Handheld Monocular
Thermal Sensor Specifications
Sensor Resolution
256 × 192 pixels
Sensor Type
Uncooled Infrared Sensor
Sensor Frame Rate
40 fps
Pixel Size
12 × 12 μm
NETD(Noise Equivalent Temperature Difference)
≤18 mK(@25°C / 77°F)
Optical Specifications
Focal Length of Objective Lens
10 mm
Base Magnification
1x (1.14x)
Digital Zoom
1x, 2x, 4x
Field Of View (FOV)(Horizontal / Vertical / Diagonal)
17.5° / 13.7° / 21.7°
Linear FOV(m @ 100m / yd @ 100 yd Horizontal / Vertical / Diagonal)
30.7 / 23.0 / 38.4
Eye Relief
65 mm / 2.6 in
Display Specifications
Display Type
Micro-OLED
Display Resolution
1024 × 768 pixels
Display Refresh Rate
50 Hz
Power Specifications
Battery Type
18650 Battery (Flat-top)
Operating Time
7 h
External Power Supply
5 V USB-C
Physical Specifications
Net Weight
320 g / 11.3 oz
Total Weight(Incl. Battery and Mount)
550 g / 19.4 oz
Dimensions
103 × 68 × 51 mm 4.1 × 2.7 × 2.0 in
Chassis Material
Aluminum Alloy
Operating Temperature
−20 to 50°C / −4 to 122°F
Ingress Protection Rating
IP 67
Recoil Rating
800 Gs / .50 BMG
System Specifications
Storage
Built-in Storage, 32 GB
Recording Format
1024 × 768 pixels @ 50 fps*
Connections
Wi-Fi / DNT App
