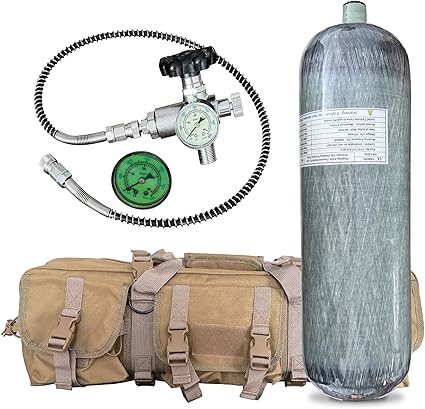

74 cu. ft. carbon fiber tank, 4,500 psi
- DIN 300 bar PCP charging station
- DIN 300 bar valve with burst disc
- Inline pressure gauge 0-400 BAR
Charging Station:
- 4,500 psi max pressure
- 24 in. microbore hose with 1/8" BSPP
- Male and female threaded ends, each 1/8" BSPP
- Stainless steel female quick-disconnect coupling attached to output end of hose
- Includes test plug for checking pressure remaining in the tank
Specifications:
- Carbon fiber filament wound over aluminum bladder
- 74 cu. ft. air capacity
- 4,500 psi max pressure
- DOT-approved
- 10 lbs. dry weight
- 7" wide
- 23" tall to top of valve
- Empty weight 10 lbs
- Filled weight 14.55 lbs
Air Venturi 100 cu-in Carbon Fiber Air Tank w/ Valve and Hose
- 4,500 psi max fill pressure
- 100 cu-in air capacity
- Valve is unregulated
- Integrated Pressure Release valve
- DIN 300 Output Valve (Female threads)
- Airflow restrictor (Slow Flow Valve)
- Stainless steel female quick-disconnect coupling attached to output end of hose
- Includes test plug for checking pressure remaining in the tank
- 16" tall
- 4.3" diameter
- Empty weight 4.3 lbs
- Filled weight 5.4 lbs
- DOT-approved
